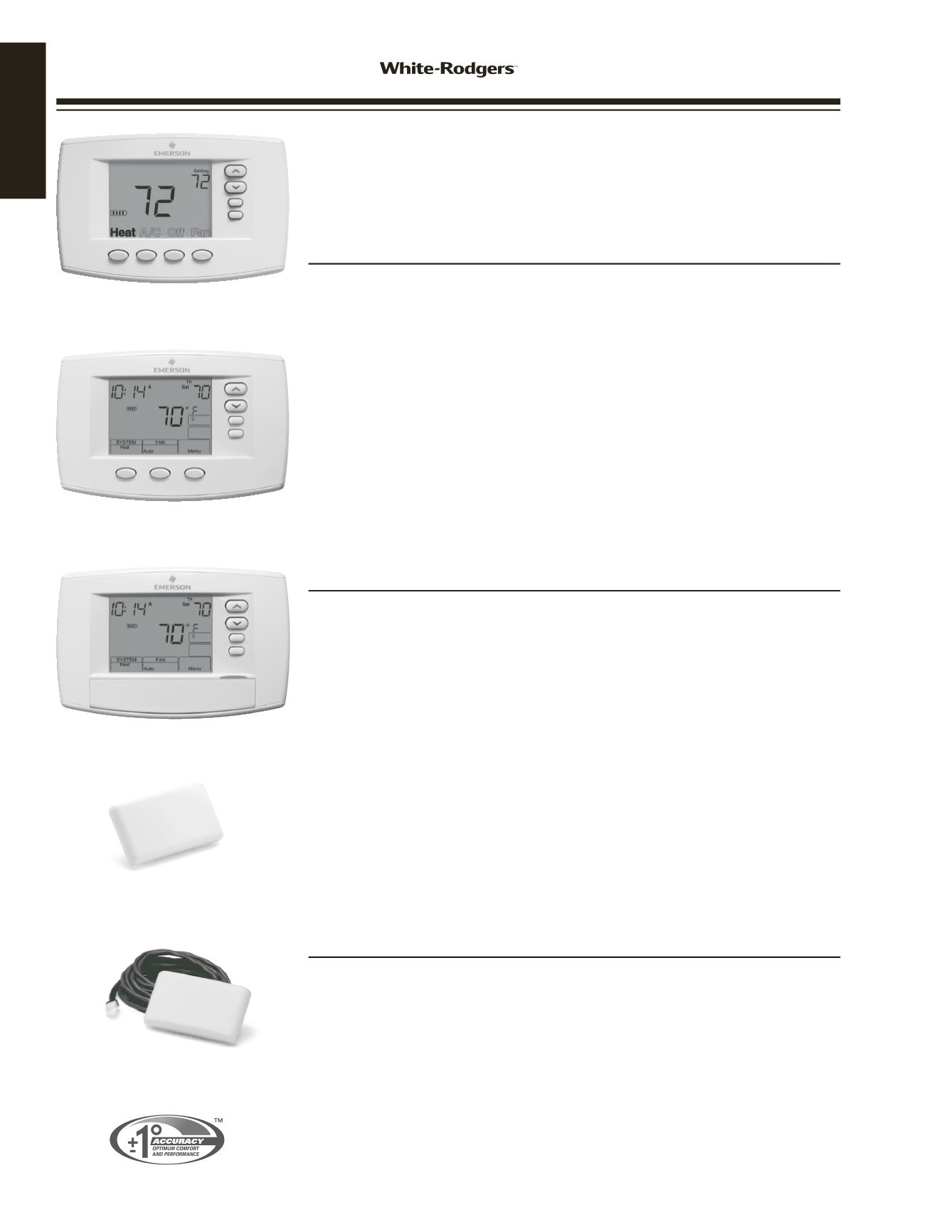

THERMOSTATS
BLUE 6
”
THERMOSTATS
bLUE 6
”
- UNIVERSAL COMMERCIAL AND
EASY READER THERMOSTATS - 6 SQ. IN. DISPLAY
Blue 6
”
Models Offer More Premium Features than Higher Priced
Competitive Touchscreen Models
FEATURES
• Universal models quickly configure for single stage, multi-stage or heat pump and
heat pump duel fuel systems - programmable or non-programmable
•
Easy Reader model is easy to read and easy to use.
•
Commercial
offers occupied damper or economizer control and locking cover and
subbase
•
Staging
control for nearly all conventional and heat pump systems
•
Single stage
model compatible with all single stage systems low voltage, 750 mV
and 3-wire zone systems. 1F97-0671 not pictured.
• Heat Pump dual fuel option eliminates the need for a fossil fuel kit.
• Automatic changeover option.
• Program fan options.
• Keypad lockout and setpoint temperature limit options.
• Indoor remote sensor for averaging option.
• Outdoor remote sensor option on select Universal models for outdoor temperature
reading and dual fuel balance point or outdoor thermostat function (select models)
• Dual power - hardwire and/or battery or Tripower - hardwire and/or battery with
system assist.
SPECIFICATIONS
Electrical Rating:
Hardwire . . . . . . . . . . . . 20-30 VAC, NEC Class II 50/60Hz
Battery Power . . . . . . . . . . mV to 30 VAC, NEC Class II, 50/60 Hz or DC
Terminal Load . . . . . . . . . . 1.5 A per terminal,
2.5 A maximum all terminals combined
Setpoint Range . . . . . . . . . 45 to 99°F (7 to 37°C)
Rated Differentials, Universal Models: Fast
Slow
Heat(Single Stage/Multi-Stage) . . 0.6°F 1.2°F
Cool (Single Stage/Multi-Stage) . . 1.2°F 1.7°F
Pump . . . . . . . . . . . . 1.2°F 1.7°F
Emer. Heat . . . . . . . . . . 1.2°F 1.7°F
Rated Differentials - Single Stage Models: Fast
Slow
Heat . . . . . . . . . . . . . 0.6°F 1.2°F
Cool . . . . . . . . . . . . . 1.2°F 1.7°F
Operating Ambient . . . . . . . . 32 to +105°F (0 to +41°C)
Operating Humidity . . . . . . . . 90% non-condensing max.
Shipping Temperature Range . . . . -4 to +150°F (-20 to 65°C)
Dimension . . . . . . . . . . . 4
3
/
16
”
H x 6
1
/
2
”
W x 1
5
/
8
”
D
(1
7
/
8
”
D – Commercial model)
PARTS AND ACCESSORIES
See end of thermostats section for additional parts and accessories
• F145-1328 — Indoor Remote Sensor
• F145-1378 — Outdoor Remote Sensor
• F61-2600 — Wallplate 8
1
/
8
”
W X 5
3
/
8
”
H
• F61-2634 — Wallplate 6
1
/
2
”
W x 5
”
H (or order F61-2648 – 6 pack of F61-2634)
• F29-0198 — Locking Thermostat Guard - Clear Plastic
• F29-0220 — Locking Thermostat Guard - Metal, Solid Base
• Additional Thermostat Guards — see pages 34–35 for quick selection options
F145-1328
Indoor Remote Sensor
F145-1378
Outdoor Remote Sensor
1F95EZ-0671
1F95-0671
1F95-0680
www.white-rodgers.com14
24 VOLT
