Model
Number
Duty
Cycle
Terminal
Type ➀
Bracket
Style
Coil
Voltage
D.C.
Coil
Resistance
(Ohms) ➁
Contact
Material
Contact Rating (Amps) – Inductive Load
Voltage Normally Open Normally Closed
D.C. Continuous Inrush ➂ Continuous Inrush ➂
124-105111 Continuous 4 Standard 12 13.2 Silver Alloy 12 150 400 – –
124-305111 Continuous 6 Standard 12 13.2 Silver Alloy 12 150 400 50 100
124-114111 Continuous 4 Standard 24 53.0 Silver Alloy 24 150 400 – –
124-314111 Continuous 6 Standard 24 53.0 Silver Alloy 24 150 400 50 100
124-117111 Continuous 4 Standard 36 120.0 Silver Alloy 36 100 400 – –
124-317111 Continuous 6 Standard 36 120.0 Silver Alloy 36 100 400 50 100

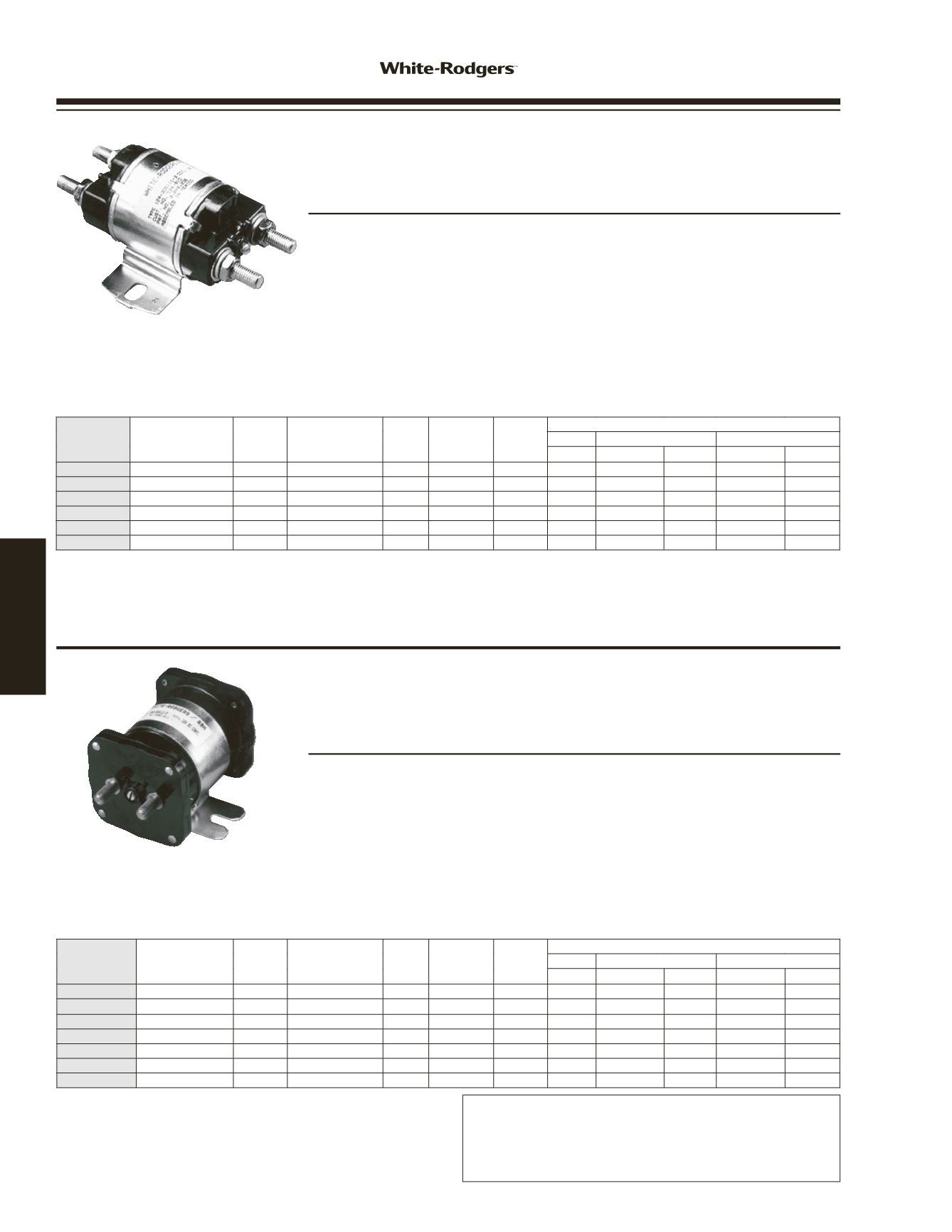

TYPE 124 CONTACTORS
Single Pole Normally Open, or Single Pole Double Throw Contacts.
Dust Resistant and Endcaps are Isolated from Bracket
SPECIFICATIONS
Dimensions, 124-105111,-114111,-117111 . . 3.56”L x 3.13”W x 2.19” H
Dimensions, 124-305111,-314111 . . . . . . 4.69”L x 3.13”W x 2.19” H
Weight, 124-105111,-114111,-117111 . . . . . 16.0 oz.
Weight , 124-305111,-314111 . . . . . . . . . 19.0 oz.
Temperature Range . . . . . . . . . . . -40° to +149°F
Terminations, Contacts . . . . . . . . . . 5/16”-24 UNF-2A thread
Terminations, Coil . . . . . . . . . . . . #10-32 UNF-2A thread
Recommended Mounting . . . . . . . . . . . Vertical plane with coil terminals up
Hardware Torque, Contact Terminal . . . . . . . 60 in. lbs. max.
Hardware Torque, Coil Terminal . . . . . . . . . 12-18 in. lbs.
Caution: A back-up wrench must be used to hold the bottom nut stationary.
Type 124
➀“4” = Isolated Coil, SPNO
“6” = Isolated Coil, SPDT
➁Coil resistance in Ohms @ 25°C
➂Inrush Current: Current applied within the first 1/2 second of contact closure
TYPE 586 CONTACTORS
Single Pole Normally Open, or Single Pole Double Throw Contacts.
Water Resistant and Case is Isolated from Bracket
SPECIFICATIONS
Dimensions, 586-114111,-117111 . . . . . . 3.69”L x 3.30”W x 2.90” H
Dimensions, 586-317111 . . . . . . . . . 4.61”L x 3.30”W x 2.90” H
Weight, 586-114111,-117111 . . . . . . . . . 24.0 oz.
Weight , 586-317111 . . . . . . . . . . . . . 26.0 oz.
Temperature Range . . . . . . . . . . . -40° to +149°F
Terminations, Contacts . . . . . . . . . . 5/16”-24 UNF-2A thread
Terminations, Coil . . . . . . . . . . . . #10-32 UNF-2A thread
Recommended Mounting . . . . . . . . . . . Vertical plane with coil terminals up
Hardware Torque, Contact Terminal . . . . . . . 60 in. lbs. max.
Hardware Torque, Coil Terminal . . . . . . . . . 12-18 in. lbs.
Type 586 SPNO
➀“4” = Isolated Coil, SPNO
“6” = Isolated Coil, SPDT
➁Coil resistance in Ohms @ 25°C
➂Inrush Current: Current applied within the first 1/2 second of contact closure
➃Ideal for 12V charging systems
NOTE: CAUTION must be used in coil selection for use in 12 volt
systems where battery charging may expose coil to continuous,
higher-than-rated voltage. 15 volt coils are recommended.
White-Rodgers will not be responsible for consequences of
misapplied solenoids.
DC POWER
CONTACTORS
Model
Number
Duty
Cycle
Terminal
Type ➀
Bracket
Style
Coil
Voltage
D.C.
Coil
Resistance
(Ohms) ➁
Contact
Material
Contact Rating (Amps) – Inductive Load
Voltage Normally Open Normally Closed
D.C. Continuous Inrush ➂ Continuous Inrush ➂
586-105111 Continuous 4 Standard 12 21.0 Silver Alloy 12 200 600 – –
586-108111 ➃ Continuous 4 Standard 15 32.8 Silver Alloy 15 200 600 – –
586-114111 Continuous 4 Standard 24 84.0 Silver Alloy 24 200 600 – –
586-117111 Continuous 4 Standard 36 189.0 Silver Alloy 36 200 600 – –
586-120111 Continuous 4 Standard 48 336.0 Silver Alloy 36 200 600 – –
586-314111 Continuous 6 Standard 24 53 Silver Alloy 24 200 600 100 200
586-317111 Continuous 6 Standard 36 120 Silver Alloy 36 200 600 100 200
